Marvell SDGOB-0892 Wifi card pinout

In this post I'll show you the correct pinout for the SDGOB-0892 wifi card. TIME WASTE DISCLAIMER: Be warned I eventually don't get this to work as a wifi dongle despite the pinout being right.




I found this Marvell card in an HP inkjet printer, it uses a USB 2.0, so it's possible to connect it to a PC. Seems like in the internet there are some variants with different pinouts, but not this one.

Model Number: SDGOB-0892
FCC ID: B94SDGOB0892
IC: 466D-SDGOB892




- 1 and 8: VCC 3.3 V
- 2, 5 and 7: GND 0 V
- 3: D+
- 4: Not connected
- 6: D-

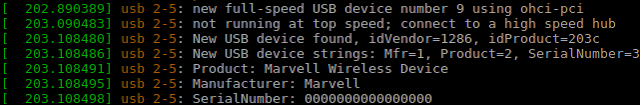

After wiring, I couldn't make it work on Windows 8.1, I got unrecognised USB. In Linux it was recognised fine:



But this wasn't enough for it to work. I guess it was a driver problem. I spent hours looking for the right one with no luck and left this at this point. Hope it helps somebody.

17 comments:

  1. Check this article: https://alexkaltsas.wordpress.com/2014/07/22/hacking-a-printerss-wifi-module/
    you probably need a driver installed.
    also, from the manufacturer documentation (https://fccid.io/document.php?id=1065017):
    The HP SDGOB-0892 or Marvell USB8786 802.11 b/g/n WLAN Client Module requires Fedora Kernel version 2.6.24.4-64.fc8 for proper operation.
    Follow the steps below to upgrade the Fedora Core from (2.6.23.1-42.fc8 Version) to Kernel Version: 2.6.24.4-64.fc8
    • Install Fedora Core 8, which has kernel version: 2.6.23.1-42.fc8 Login fedora as root
    • Download : ftp://rpmfind.net/linux/fedora/updates/8/i386/kernel-2.6.24.4-64.fc8.i686.rpm
    • Copy kernel-2.6.24.4-64.fc8.i686.rpm and kernel-devel-2.6.24.4-64.fc8.i686.rpm to your working directory, say, /(work). # cd /(work)
    • # rpm --force –ivh kernel-2.6. 24.4-64.fc8.i686.rpm (or double click this rpm icon) o this rpm is binary release for i686 (bootable kernel/modules)
    • Reboot the system.


    let us know if you made it work.

    ReplyDelete
    Replies
    1. Hi, thanks for the comment. I can't guarantee I'll try this any time soon, but if I do be sure I'll let you know. Cheers.

      Delete
    2. I got one too. Dunno wt to do whit.

      Delete
    3. isso funciona no windows 7? queria usar com arduino para poder ser controlado via internet.

      Delete
  2. hello I would like to know if I already tried the module to explain better how to use it for the wifi dogle
    Thank you

    ReplyDelete
    Replies
    1. Hi Gabriel, I don't really understand your question. I haven't touched the module since the post.

      Delete
  3. Then again, it should be an incredible interest in top notch simply like some other post with respect to hip twirl attire. wifi for gaming desktop

    ReplyDelete
  4. Привет всем от Михалыча!

    ReplyDelete
  5. С любовью из России!

    ReplyDelete
  6. when the HP inkjet printer activate wifi, voltage in Pin 4 is 3.3V

    ReplyDelete
  7. Hola, nesesito ayuda para instalar un dispositivo como este, que nesesito? Porque no se como hacerlo.

    ReplyDelete
    Replies
    1. Funciona con wuindows xp, xp pro,wuindows 7.

      Delete
    2. Hola, revisaste este link?(arriba en el primer comentario) : https://alexkaltsas.wordpress.com/2014/07/22/hacking-a-printerss-wifi-module/

      Delete
  8. Hello everybody! please tell me the driver for Windows is under it?

    ReplyDelete
